Aluminum Corrugated Panel

Aluminum Corrugated Panel

Aluminum Corrugated Panels is a kind of sandwich panel that consists of a corrugated core in thin aluminum (0.2 - 0.35 mm) between the two sheets of aluminum layer  (0.5 – 1.0 mm). This structure makes it a very light but extremely rigid sandwich panel which, particularly when used in big formats, allows significant savings in weight. Lightweight, non-combustibility, flatness and easy-fabrication methods are its excellent points to apply curtain wall in inner and outside of the buildings.

Depending on the final application, Aluminum Corrugated Panels can be supplied with different layer thicknesses and surface treatments. By varying the cover sheets, by modifying the height of the core or the surface finish, and by bonding several panels to double and triple panels a broad range of characteristics can be provided.

The surface of aluminum corrugated panel can be covered by PE coating for indoor use and covered with PVDF coating for outdoor use. Aluminum Corrugated Panel’s special construction ensures high thermal, chemical and physical durability. The panels are resistant to temperatures of up to 100°C under both static and dynamic loads.

Specifications of Aluminum Corrugated Panels

Top skin: aluminum sheet, thickness from 0.5mm to 1.0mm

Core: aluminum corrugated cores

Back skin: aluminum sheet, thickness from 0.3mm to 1.0mm, or back skin can be absent according to your design

Regular color: white, grey, silver, black, any other RAL color can be customized

Panel size: 1220x2440mm, custmize within 2000x6000mm

Features of Aluminum Corrugated Panel

• Lightweight. 8mm aluminum corrugated panel weighs only 4kg/m2.

• Excellent mechanical properties.

• Heat Insulation


• Various color choice

• Easy installation

• Super flatness and high strength

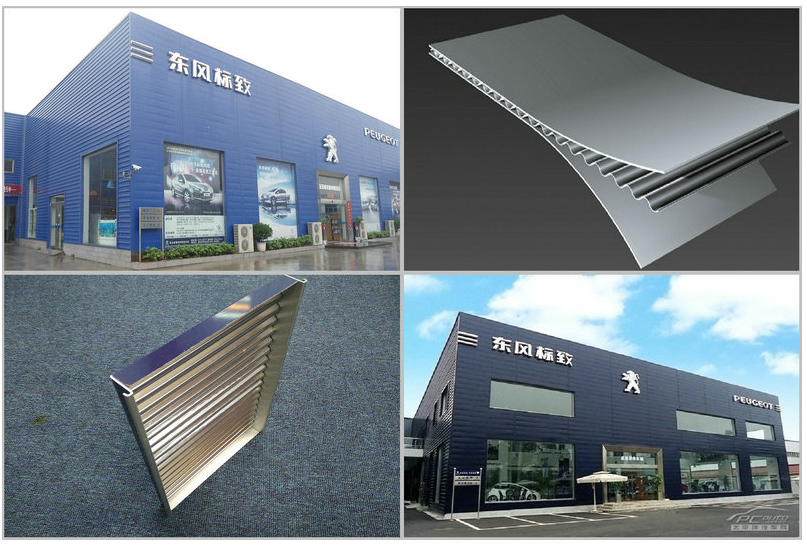

Applications of Aluminum Corrugated Cores

• Building exterior, interior wall covering, ceilings, partitions

• Column covers and soffit and fascia panels

• Signage and white boards

• Furnitures and Tables

• Rounded walling, roofing
