Interior and Exterior Decorative Single Curved and Double Curved Aluminum Honeycomb Panels

1. General Information Aluminum honeycomb panel is sandwich panel bonded with aluminium face material and with a core in aluminium honeycomb. It offers high mechanical properties and good fire performances. The aluminum face material can be pre-painted in different RAL colors. The aluminium...

Product Details

1. General Information

Aluminum honeycomb panel is sandwich panel bonded with aluminium face material and with a core in aluminium honeycomb. It offers high mechanical properties and good fire performances. The aluminum face material can be pre-painted in different RAL colors. The aluminium faces (skins) are available in different thicknesses and coatings, anodized or with primer.

The aluminum skin we use 3003 or 5052 alloy according to customer’s different applications.

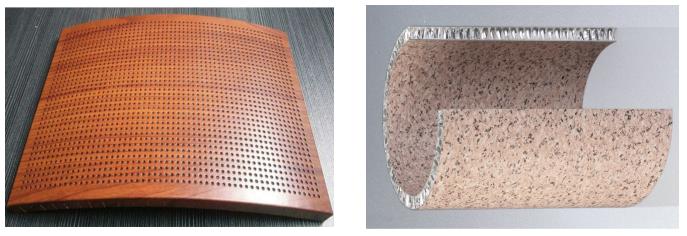

The aluminum honeycomb can be made into curved shapes, we can manufacture single curved and double curved panels using curved mold when composition

curved aluminum honeycomb panels.jpg

curved shape aluminum honeycomb panels.jpg

 1200x5000mm curved honeycomb panels.jpg

single curved aluminum honeycomb panels.jpg


2. Specifications Available

HWSTRONGER honeycomb panel is available in various standard thickness of 6, 8,10, 15, 20 and 25mm (maximum thickness go up to 200mm) and is supplied at standard widths of 1220mm or 1500mm and maximum length go up to 10000mm. The production of special is possible.



Aluminum Sheet/ Aluminum Alloy

Available thickness: 0.5mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm.

Standard Aluminum Alloy: A3003

Custom Made/ Special Size are available



Colors

30 Standard colors/ Timber Series/ Stone Series/ Metal Series/ Anodize Colors/ Stylish Coat/ Stylish Anodize/ Sparking

Any Color in RAL chart is available.



Coating

Honeycomb Panels used for Interior and Exterior Walls are pre-coated.

* PE(Polyester) for interior use

* PVDF(Fluorocarbon) for exterior use

* Nano



3. Applications
Aluminum honeycomb panels can be used in a variety of fields including wall materials, interior decoration, ceiling, partition, furniture industry, ship hull building and ship decoration, vehicle building, lift and elevator, Train and high speed subway.

aluminum honeycomb panels usage.jpgapplication of aluminum honeycomb panels.jpg

customize aluminum honeycomb panels.jpgexterior use aluminum honeycomb panels.jpg


4. Advantages of aluminum honeycomb panels compared to aluminum plate and aluminum composite panels:

1.Green, environmental firendly and energy-saving.

Aluminum honeycomb panel panel is made of whole aluminum alloy which is 100% recyclable, it is a kind of green, environmental protection and energy saving new building materials, also known as the best curtain wall building materials in the twenty-first century.


2. High strength, good rigidity,high stability, stable layout, good wind load capacity.

Aluminum honeycomb panel with its light weight, high strength, high stiffness and many other advantages, has been widely used in the building interior and exterior decoration.

Taken aluminum honeycomb core as the sandwich material, the weight of aluminum honeycomb panel is only 1/5 of aluminum plate and 1/10 of steel plate. The interconnected honeycomb core structure is as numerous 工 shape beams, distributed in the entire aluminum Honeycomb curtain wall panels to make the honeycomb curtain wall is not easy to shear, to make the whole panel more stable. Besides, aluminum honeycomb curtain wall panel has much more wind load capacity than the aluminum plate and aluminum composite panels, and is not easy to deformation, even in very large size the honeycomb panel can keep super flatness.


3. Sound insulation, heat insulation.

After composition, the honeycomb core inside is like numbers of closed room, the honeycomb wall can block the air flow, so the heat and sound waves are not easy to convey, the sound dampening of 100-3200HZ source can reach 20-30DB. The thermal conductivity is can be lower than 2.25 入*(w/m2k).

In the event of heavy rain, the raindrops hit the aluminum veneer or aluminum composite panel will cause much noise, by using aluminium honeycomb panel the noise will be greatly reduced.


4.Colorful and durable surface finish.

The skin of HWSTRONGER aluminum honeycomb panel is roller coated with PVDF coating which can be in hundeds of colors and can be durable for more than 15 years in outdoor use.


5. Good decoration property, easy process and install.

The skin of aluminum honeycomb panel can be chosen from different materials according to specific applications, you can choose stainless steel, prepainted galvanized sheets, fiberglass sheet, pvc sheet, HPL laminate, stones and etc. The aluminium honeycomb panel is easily to be cut on construction site or at your own factory. Different shapes can be formed by cutting, slotting, and CNC machine processing.


6. Fireproof and more durable than aluminum composite panels and solid aluminum plates.


5. Technical Data:

Type

Thickness

Thickness of Al
front sheet

Thickness of Al
   Back sheet

Weight

Rigidity
E-I

   Section
  Modulus  W

HW-01

6.0mm

0.7mm

0.7mm

5.0kg/ m2

0.71kNm/m

2.6cm/m

HW-02

10mm

1.0mm

0.5mm

5.5kg/ m2

1.73kNm/m

4.7cm/m

HW-03

10mm

1.0mm

0.7mm

6.0kg/ m2

2.19kNm/m

4.6cm/m

HW-04

15mm

1.0mm

1.0mm

6.9kg/ m2

7.55kNm/m

14.0cm/m

HW-05

50mm

1.0mm

1.0mm

7.5kg/ m2

13.90kNm/m

19.0cm/m

HW-06

25mm

1.0mm

1.0mm

7.9kg/ m2

22.17kNm/m

24.0cm/m


6. Packaging & Delivery:
There are plastic protective film on panel surface, then panels are piled flatly on plywood crates.
 plywood packing of aluminum honeycomb panels.jpg



7. Delivery time:
Regular lead time: 10-20 days
Peak season lead time: 30 days.
Off season lead time: 10 working days



8. Certificates: ISO9001, SGS, FEFTC, BV, TUV, LR, CCS, CE


9. FAQ

Are you trading company or manufacturer?

We are manufacturer.

Do you offer free samples? How long does it take to get a sample?

Yes we offer free samples. Stock sample can be sent immediately once required, customized sample takes 3-5 days.

How do you control the quality?

For each order, we will have pre-production meeting which helps our production team to better understand order details and quality requirements to avoid any mistake in the production.

During production, we have QC to check the quality of each process.

The honeycomb cores and glues used are all produced by our branch factory so we have good control on the raw material.

Pre-shipment inspection is welcomed.

What is your terms of payment?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, 70% balance shipment before shipment. L/C at sight is acceptable.
