HWSTRONGER specializes in designing, manufacturing and supplying the finest quality line of commercial and residential honeycomb products and stone & porcelain honeycomb products. Our expertise has allowed us to create ultra-thin, lightweight stone or porcelain honeycomb panels and FiberStone panels that offer unparalleled beauty and unmatched strength in one. By using natural stone veneer backed by durable, long lasting aluminum honeycomb, we offer stone solutions for your every possible need....
Chat Now

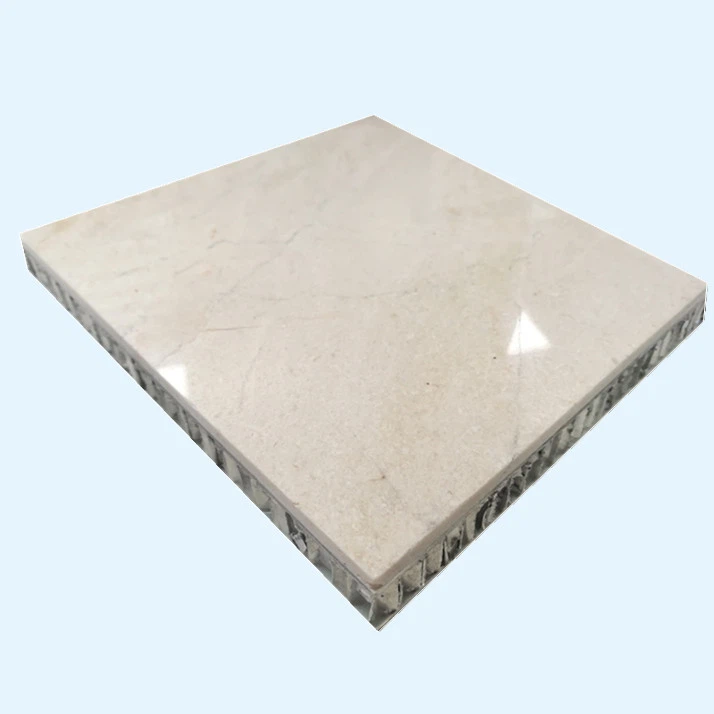

   Stone Honeycomb Panels

HWSTRONGER specializes in designing, manufacturing and supplying the finest quality line of commercial and residential honeycomb products and stone & porcelain honeycomb products. Our expertise has allowed us to create ultra-thin, lightweight stone or porcelain honeycomb panels and FiberStone panels that offer unparalleled beauty and unmatched strength in one. By using natural stone veneer backed by durable, long lasting aluminum honeycomb, we offer stone solutions for your every possible need.



Structure of Stone honeycomb panel

Composition:  Stone veneer + aluminum honeycomb panel

Adhesives:  two component epoxy resin

Stone material: quartz, marble, granite, sandstone, limestone, etc.

Surface Treatment: Polished, Honed, flamed, water-jet, sand-blasted and so on



Stone honeycomb panel specification

Face sheet: 3-10mm natural stone veneer

Total thickness:10-35mm

Maximum size:

marble honeycomb panel 1500*3000mm,

granite honeycomb panel 1200*2400mm

Granite:5.74 pounds/sq.ft (28kg/sq.m), 1/2 weight of 2cm granite slab
Marble: 5.33 pounds/sq.ft (26kg/sq.m), 1/2 weight of 2cm marble slab

Special size & shape: can be customized according to project’s drawing


Features of stone honeycomb panels:

1. Low density, high intensity, high rigidity, stable structure

2. Outstanding flatness, superior weather-proof, wind-proof and pressing proof functions.

3.Good sound & heat insulation, good at shock-resistance

4.Easy to process and shape, easy to install

5.Green and environmental, energy-saving material

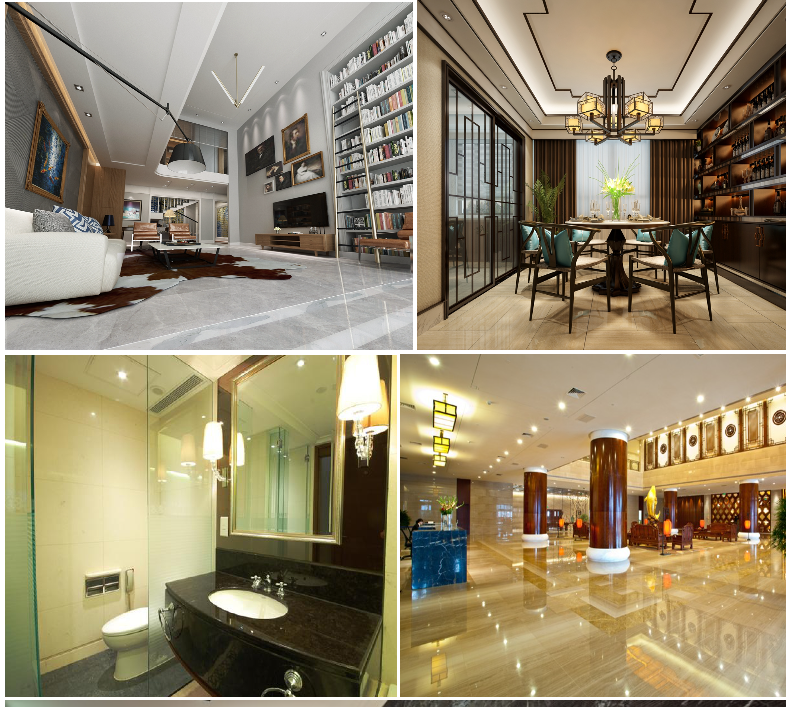

Applications  of stone honeycomb panels:

1) Building exterior and curtain wall.

2) Decoration and renovation additions for old buildings

3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

4) Shop door decoration .

5) Advertisement board display platforms and signboards.

6) Wallboards and ceilings for tunnels.

application of stone honeycomb panels.png


Installation of stone honeycomb panels

Stone honeycomb panel adopts a dry hanging system, special interlock aluminum profiles are used to fixing the stone honeycomb panel to the walls. One profile is screwed to the back of stone honeycomb panels, the other one is screwed to the steel tubes on the walls, then the two profile will be interlocked together. The dry hanging system screws the stone honeycomb panel into the walls instead of using cement mortar, thus has better fixing strength and much safer.

 installation of stone honeycomb panels.png
