    Granite Stone Honeycomb Panels For Wall Facades


Overall panel thickness: 25mm

Stone type and thickness: G633  7mm thick

Panel size: 600x600mm

Aluminum honeycomb panel: 18mm with 0.8mm aluminum on both skins


1.     General Information

Stone honeycomb composite panel consists of a natural and super-thin Stone veneer (3mm-5mm) and an aluminum honeycomb panel, tightly bounded together by highly adhesive film.  This kind of product maintains the beauty of nature marbles and granite while overcome their disadvantages of fragility and heavy weight. Puts an aluminum sheet between the stone veneer and aluminum honeycomb so that the products have good impact resistance and flexural strength.

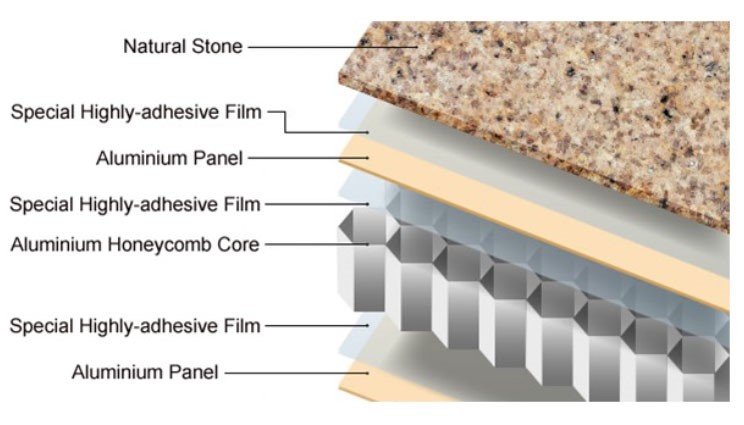

Structure of stone honeycomb panels
stone composite panel structure.jpg



2.Specification of stone honeycomb panels

Panels Thickness

6mm-600mm

Stone Thickness

3mm, 5mm, 6mm, 8mm, 10mm,   etc.

Stone surface treatment

Brushed, polished, honed,   flamed, grooved, rubbing, etc.

Width:

300mm-1200mm

Length

300mm-3000mm

Max Size

1500mmx6000mm

1. For interior wall: 15-20mm (stone: 5mm/6mm); mostly use marble & travertine; surface treatment: polished/matt surface
2. For exterior wall:20mm to 30mm (stone: 7mm/8mm); mostly use granite & marble with dark color; surface treatment: polished/matt surface for marble


3.Features:
(1) Light weight, the standard stone marble honeycomb panel weights 16kg per square meter, which is 1/5 of that of the pure stone panel.
(2) High intensity and high capability of anti-strike; its intensity is 10 times of
that of the natural stone.
(3) Good quality of sound insulation and heat insulation.
(4) Convenient to construction, easy to installation.
(5) Low weight, lower burden to the building, increase building life span.

(6) Good weather and corrosion resistance.
(7) Can be made to flat shape, arc shape and sphere shape etc. wide optional colour, good decoration effect;
(8 ) Environmental friendly, super pollution resistance , easy to clean and quick to fit and can be recycled.



4.Technical Data of stone honeycomb panels:

Items

Technical requirements

W

N

 Contamination   resistance

No visible residual   contamination

 Falling ball impact   resistance

No glue-off or damage

Soft heavy object impact   resistance

 No glue-off or damage

 Flatwise compressive   strength/MPA

≥0.8

≥0.6

 Flatwise compressive   elastic modulus/ MPA

≥30

≥25

 Flatwise shear   compressive/ MPA

≥0.5

≥0.4

 Flatwise shear   compressive/ MPA

≥4.0

≥3.0

Climbing drum peel   strength (N.mm/mm)

 Average value

≥50

≥40

 Minimum value

≥40

≥30

 Flatwise tensile   adhesive strength MPA

Average value

≥1.0

≥0.6

 Minimum value

≥0.6

≥0.4

 Flexural strength (standard   value) MPA

 Granite

≥8.0

 -

Sand stone, Marble, Limestone

≥4.0

Flexural   rigidity                        (N.mm2)

 Aluminum honeycomb   panel

≥1.0 x 109

≥1.0 x 108

 Steel honeycomb panel

≥1.0 x 109

FRP honeycomb panel

≥1.5 x 108

 Shearing rigidity/N

≥1.0 x 105

≥1.0 x 104

 Hot water resistance

 Appearance

 No abnormalities

 -

 Average decrease percentage   of flatwise adhesive strength (%)

≤ 15

 Temperature different   resistance

 Appearance

 No abnormalities

 Average decrease   percentage of bending strength (%)

≤ 20

 Anti-freezing

 Appearance

 No abnormalities

Average decrease percentage of   flatwise adhesive strength (%)

≤ 15

Note:  The width   of the sample in flexural test is 100mm.



5. Comparison of Stone Honeycomb Panel and Traditional Stone Slab

 Items

Traditional stone Slab With   Junction Piece

Stone Honeycomb Panels

Weight comparison

30mm Total thickness

 20mm Total thickness

 75kg/m2 (weight)

 15kg/m2 (weight)

 Performance comparison

 Unable to bend

Bendable (pressing 30mm bent   not crack or broken)

Installation

big expenditure

 small expenditure

(>$50.00/m2)

 (<$16.00/m2 )

Safety Performance

Cracking in impact-resistant   test

Only with punctate cracking

Material availability   (useful material output from one cubic)

 28-38m2

80-100m2

Maximum size

≤ 600 x 600

up to 1600 x 3200


composition of stone honeycomb and stone.jpg


6. Applications:
Stone honeycomb panels can be used in
1. Interior and exterior wall cladding, curtain wall
2. Furniture board, tables, and door
3. Bathroom, kitchen interior decoration;
4. Marine vessels interior decoration;
5. Ceiling, roofing & flooring
6. Partitions (wall partition and toilet partition)
7. Decoration material for office buildings, shopping mall, hotels, metro, subways station, train/railway station, air terminal
8. Cleaning room
9. Machine board
10. Bus, Truck, Camper, Ship, Aerospace Industry
11. Lift and Elevator decoration
