Stone Aluminum Honeycomb Composite Panels

Decorative Travertine Stone Honeycomb Composite Panels for Interior and Interior Wall

1. General In formation Stone honeycomb composite panel consists of a natural and super-thin stone veneer (3mm-8mm) and an aluminum honeycomb panel or fiberglass honeycomb panel, tightly bounded together by highly adhesive film. This kind of product maintains the beauty of nature marbles and......

1. General Information

Stone honeycomb composite panel consists of a natural and super-thin stone veneer (3mm-8mm) and an aluminum honeycomb panel or fiberglass honeycomb panel, tightly bounded together by highly adhesive film. This kind of product maintains the beauty of nature marbles and granite while overcome their disadvantages of fragility and heavy weight. Puts an aluminum sheet between the stone veneer and aluminum honeycomb so that the products have good impact resistance and flexural strength.

Structure of stone honeycomb panels
natural stone honeycomb panels .jpg

travertine stone honeycomb panels.jpg


2.Specification of stone honeycomb panels

Stone Type

Marble, Granite, Travertine, Sandstone, etc.

Panels Thickness

10mm-400mm

Stone Thickness

3mm, 5mm, 6mm, 8mm, 10mm, etc.

Stone surface treatment

Brushed, polished, honed, flamed, grooved, rubbing, etc.

Width:

300mm-1200mm

Length

300mm-3000mm

Max Size

1500mmx6000mm


3.Features:

(1) Light weight, the standard stone marble honeycomb panel weights 16kg per square meter, which is 1/5 of that of the pure stone panel.

(2) High intensity and high capability of anti-strike; its intensity is 10 times of

that of the natural stone.

(3) Good quality of sound insulation and heat insulation.

(4) Convenient to construction, easy to installation.

(5) Low weight, lower burden to the building, increase building life span.

(6) Good weather and corrosion resistance.

(7) Can be made to flat shape, arc shape and sphere shape etc. wide optional color, good decoration effect;

(8 ) Environmental friendly, super pollution resistance , easy to clean and quick to fit and can be recycled.


4.Technical Data of stone honeycomb panels:

Items

Technical requirements

W

N

Contamination resistance

No visible residual contamination

Falling ball impact resistance

No glue-off or damage

Soft heavy object impact resistance

No glue-off or damage

Flatwise compressive strength/MPA

≥0.8

≥0.6

Flatwise compressive elastic modulus/ MPA

≥30

≥25

Flatwise shear compressive/ MPA

≥0.5

≥0.4

Flatwise shear compressive/ MPA

≥4.0

≥3.0

Climbing drum peel strength (N.mm/mm)

Average value

≥50

≥40

Minimum value

≥40

≥30

Flatwise tensile adhesive strength MPA

Average value

≥1.0

≥0.6

Minimum value

≥0.6

≥0.4

Flexural strength (standard value) MPA

Granite

≥8.0

-

Sand stone, Marble, Limestone

≥4.0

Flexural rigidity           (N.mm2)

Aluminum honeycomb panel

≥1.0 x 109

≥1.0 x 108

Steel honeycomb panel

≥1.0 x 109

FRP honeycomb panel

≥1.5 x 108

Shearing rigidity/N

≥1.0 x 105

≥1.0 x 104

Hot water resistance

Appearance

No abnormalities

-

Average decrease percentage of flatwise adhesive strength (%)

≤ 15

Temperature different resistance

Appearance

No abnormalities

Average decrease percentage of bending strength (%)

≤ 20

Anti-freezing

Appearance

No abnormalities

Average decrease percentage of flatwise adhesive strength (%)

≤ 15

Note:  The width of the sample in flexural test is 100mm.


5. Production Process of Stone Honeycomb Composite Panels



6. Applications:
Stone honeycomb panels can be used in
1. Interior and exterior wall cladding, curtain wall
2. Furniture board, tables, and door
3. Bathroom, kitchen interior decoration;
4. Marine vessels interior decoration;
5. Ceiling, roofing & flooring
6. Partitions (wall partition and toilet partition)
7. Decoration material for office buildings, shopping mall, hotels, metro, subways station, train/railway station, air terminal
8. Cleaning room
9. Machine board
10. Lift and Elevator decoration

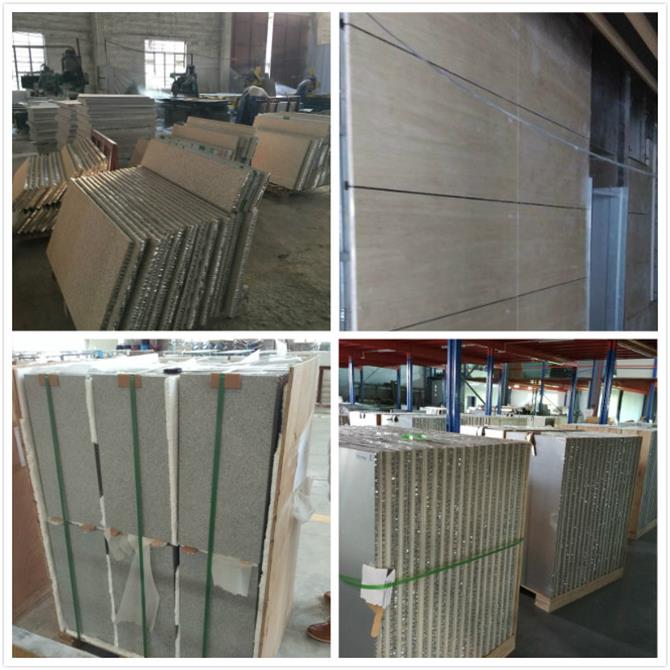

stone honeycomb panels application.jpg


7. Packaging and Delivery:
Packed with plastic foam and in export grade plywood crates.


Delivery Time: Order ≤500m2, normal delivery time 15 days.

Order ≥500m2, regular delivery time 20 days.

Actually delivery time is depended on order quantity and production difficulty.



stone honeycomb composite panels packing.jpg
