2.5mm Thick Solid Aluminum Panel for Exterior Wall Facades

1. General Information HWSTRONGER aluminum single plate use alloy 3004,3003,1100 aluminum plate as base plate from south-west aluminum. The precision sheet metal manufacturing process, the removing oil, rust, dirt, cadmium, coating and spay with TIGER, PPG, AKZO brand fluorocarbon paint....

Product Details

1. General Information

HWSTRONGER aluminum single plate use alloy 3004,3003,1100 aluminum plate as base plate from south-west aluminum. The precision sheet metal manufacturing process, the removing oil, rust, dirt, cadmium, coating and spay with TIGER, PPG, AKZO brand fluorocarbon paint.

Aluminum veneer constitute fluorocarbon pure aluminum plate, stiffeners, hangers etc. We stick rock wool board to insulate hot. This product has the advantages of high weather resistance, wind resistance, surface smooth, durable, light weight, convenient transportation, easy installation, low cost, beautiful appearance, strong metal texture, 100% recovery advantages.

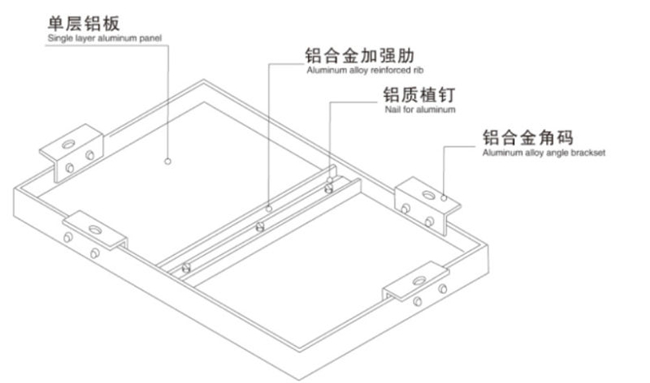

2. Structure of solid aluminum panel

3. Available Specifications:

Panel thickness:

1.5mm-10mm.

Width:

600mm,800mm,1000mm,1220mm(regular), 1250mm,1300mm,1500mm,1550mm, 1575mm,2000mm(maximum)

Length:

Up to 4000mm;

Standard size:

1220mm (Width) ×2440mm (Length).

Surface Treatment:

PVDF coating and PE coating.

Non-standard sizes and special colors (RAL or PANTONE) are available depending on customers' offers.



4. Features:
1. Light weight, Good rigidity, high strength 3.0mm thick aluminum plate per square plate 8kg, tensile strength 100-280n/mm2

2. Durability and corrosion resistance is good. PVDF fluorocarbon paint with kynar-500, hylur500 as the base material, will not fade in 25 years. Aluminum veneer curtain wall construction.

3. Good technology. The aluminum sheet can be processed into planar, arc shaped and spherical surface with the complicated geometry of plane, arc shape and sphere.

4. Uniform coating, color diversity. The advanced electrostatic spraying technology makes the paint and aluminum plate adherent and uniform, and the color is varied, and the choice of space is large.

5. Not easy to smear, easy to clean and maintenance. The non-adhesive property of fluoride paint film makes it difficult to attach contaminants and has good cleanness.

6. The installation of convenient and fast. Aluminum sheet in the factory, the construction site does not need to cut, fixed on the skeleton can.

7. Can be recycled, favorable environmental protection. Aluminum can be recycled 100%, unlike glass, stone, ceramic, plastic plates and other decorative materials, the high recovery value.

5. Production work flow:




6. Applications:

1. The exterior wall of the building, column, balcony, canopy

2. Airports, stations, hospitals

3. Conference room, opera house

4. Stadium

5. Reception lobby and other high-rise buildings

6. Building ceiling

7. Elevator walls
