25mm Thick Fireproof Stone Look Aluminium Honeycomb Composite Panels for Wall Facades and Partitions
1. General Information

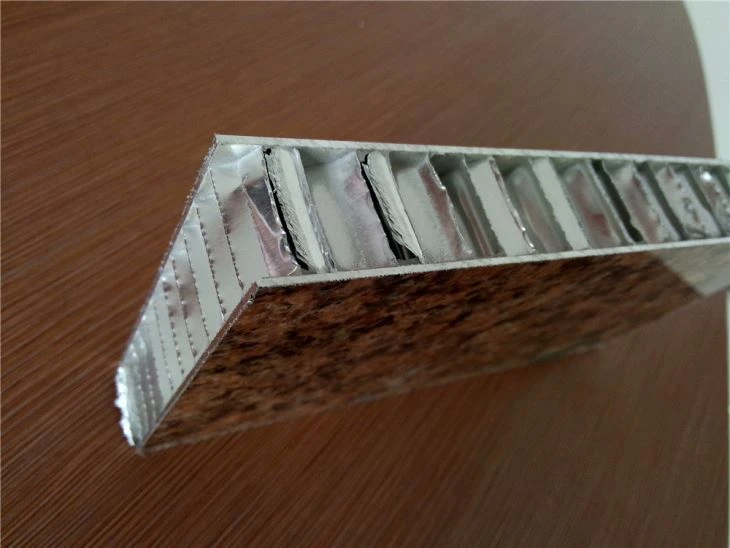

Stone look aluminum honeycomb panel is sandwich panel bonded with pre painted aluminium face material( painted like stones) and with a core in aluminium honeycomb. It offers high mechanical properties and good fire performances. The aluminum face material can be pre painted in different stone grains. HWSTRONGER Stone Look Honeycomb Panel is a good substitute for solid natural stone cladding especially for high rise building cladding.
HWSTRONGER honeycomb panel is available in various standard thickness of 6, 8，10, 15, 20 and 25mm (maximum thickness go up to 200mm) and is supplied at standard widths of 1220mm or 1500mm and maximum length go up to 10000mm. The production of special is possible.
The top aluminum sheet can be chosen from 0.5mm thickness to 2.5mm thickness. Recommended top skin thickness with stone color is 0.8mm or 1.0mm.
Back skin, however, you can choose thinner sheet to save costs such 0.5mm.
All alloy used for HWSTRONG honeycomb panels are 3003 series.
30 Standard colors/ Timber Series/ Stone Series/ Metal Series/ Anodize Colors/ Stylish Coat/ Stylish Anodize/ Sparking
Any Color in RAL chart is available.
Honeycomb Panels used for Interior and Exterior Walls are pre-coated.
* PE(Polyester) for interior use
* PVDF(Fluorocarbon) for exterior use
Aluminum honeycomb panels can be used in a variety of fields including wall materials, interior decoration, ceiling, partition, furniture industry, ship hull building and ship decoration, vehicle building, lift and elevator, Train and high speed subway.
Stone Look Aluminum Honeycomb Panels used for External Cladding of a Commercial Building in Mongolia.
Total Area: 20,000 Square Meters
1. Excellent strength
2. Superb flatness
3. Long Life, PVDF coated honeycomb panel is durable for 20 years
4. Light weight, 10mm aluminum honeycomb panels only 4.5kg per square meters
5. Fire retardant, aluminum honeycomb panel is A2 class fireproof materials test according to Chinses National Building Materials Center
6. Environmental and completely recyclable
7. Sound proof and thermal insulation
8. Weather Resistance, wind load resistance
Thickness of Al
Thickness of Al
6. Packaging & Delivery:
Protective film on the surface of aluminum honeycomb panel, then the panel is packed in export grade plywood crates.
7. Delivery time:
Regular lead time: 10-20 days
Peak season lead time: 30 days.
Off season lead time: 10 working days
8. Certificates: ISO9001, SGS, FEFTC, BV, TUV, LR, CCS, CE
How can I get a price?
The panels are customized products, please kindly send your detailed requirements, you can email us or call us, after we confirm all details we will provide quote within 24 hours.
Do you offer free samples?
Yes we do. Normally our free samples are in size of 200x300mm. But the sample courier cost need to be paid by customer, normally the courier cost is about USD80.
Do you provide warranty for the panels?
Yes we do. We provide 10-15 years warranty.
