Polypropylene Honeycomb Panels

Polypropylene Honeycomb Panels

Polypropylene honeycomb panel is a lightweight sandwich panel with a polypropylene honeycomb core bonded with glass fiber reinforced with polyester resin. The fiberglass skin is often in thickness of 1.5mm and 2.0mm with gel coating.

Product Details


Polypropylene Honeycomb Panels

Polypropylene honeycomb panel is a lightweight sandwich panel with a polypropylene honeycomb core bonded with glass fiber reinforced with polyester resin. The fiberglass skin is often in thickness of 1.5mm and 2.0mm with gel coating.


This panel offers unique characteristics since it combines lightweight with high mechanical properties.
Because of the high strength, the impact resistance and scratch resistance of the composite plate are very high.

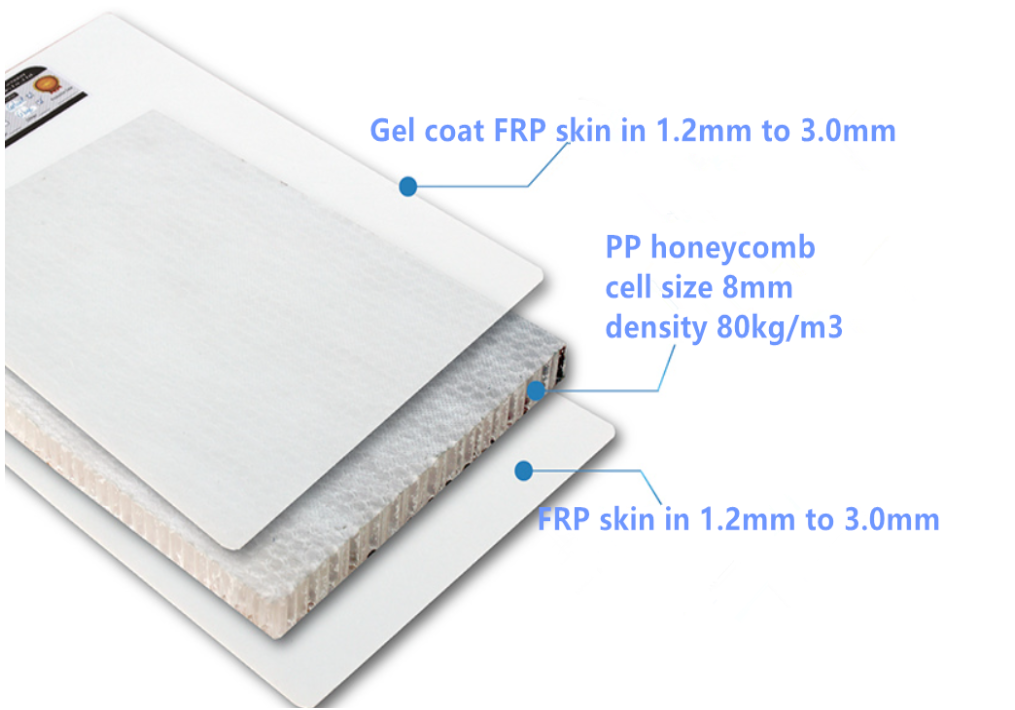

GRP honeycomb panels.png


Top skin:  fiberglass reinforced with polyester resin, gel coated in glossy white or in matt white, other colors are customizable

Core: Polypropylene honeycomb, nomal cell size 8mm, density 75-80kg/m3

Back skin: fiberglass reinforced with polyester resin, with or without gel coating.

Anti slip skin for floor use is also available.

polypropylene honeycomb panels.jpg



Fiberglass honeycomb panel main features:

1.Temperature resistence: fiberglass sheet is a thermosetting polymer material, which has good temperature resistance, the use of temperature is in the -70℃ ~ 80℃.


2. Impact resistance: due to product structure containing glass fiber reinforced materials, it greatly improves the anti impact performance of the product. It is not easy to break under the rubble and hail impact.


3. corrosion resistance: competence of various acid, alkali and other chemical corrosion, especially suitable for in the coastal and corrosive places.


4. The outer surface of the glass reinforced plastic honeycomb panel adopts the high quality color gel coat, its excellent performance is international certification of food grade gel coat resin, which has a good chemical stability of the atmosphere, water, and the general concentration of acid, alkali, salt and other medium; it is due to this layer of special gel coat, carriage plate of high surface finish, excellent light, discoloration, corrosion resistance, anti sunlight, anti-aging, very suitable for colorful car advertising.


5. Fiberglass honeycomb panel is lightweight, and it can effectively reduce the weight of car body, increasing the load, improve the quality coefficient of the van.


6.  Glass reinforced plastic honeycomb board repair is very convenient and repair after treated without obvious signs of repair.

fiberglass polypropylene honeycomb panels.jpg

Applications of polypropylene honeycomb panel

Glass fibre reinforced plastic polypropylene honeycomb panel is a kind of important engineering wall material, and it can solve weakness of  the traditional wall material such as not easy to be cleaned, easy to sag deformation, difficult installation, poor durability, easy to wear, impact resistant performance is poor,  it has gradually replace stainless steel sheet, plate in the world. Besides, it has been widely used in transportation and logistic industries.

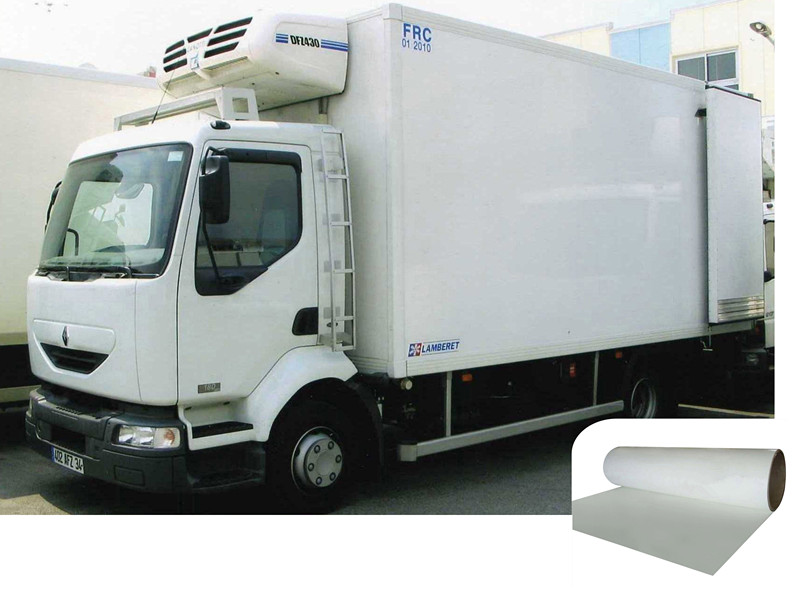

plypropylene honeycomb panels for truck body.jpg

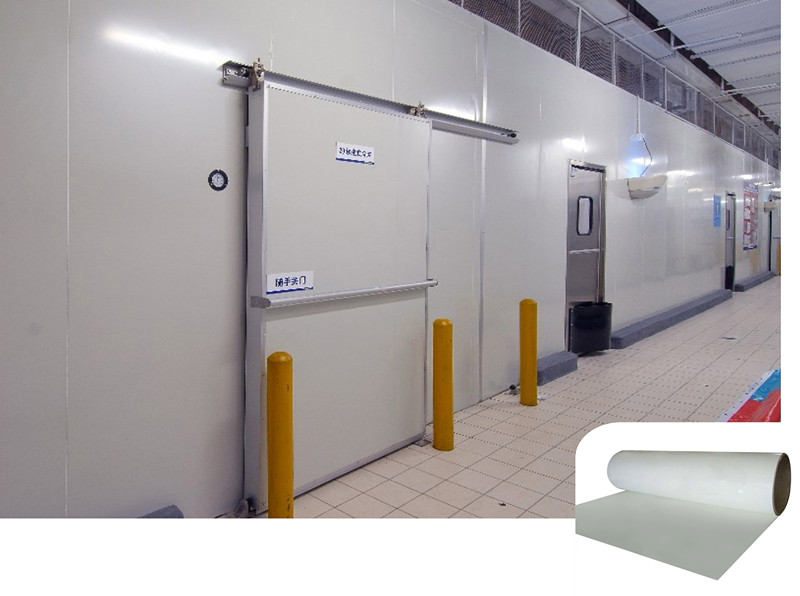

plypropylene honeyomb panels for cleanroom use.jpg
