Aluminum Honeycomb Cores

Aluminum Honeycomb Cores

Aluminum honeycomb core is made from high quality aluminum foil in alloy 3003 series and alloy 5000 series. The aluminum foil is treated anti-corrosion and with micro perforations on the foil walls. Aluminum honeycomb core is a kind of green and environmental compounded materials of high quality, low density, fire protection, sound insulation and thermal insulation....
Chat Now

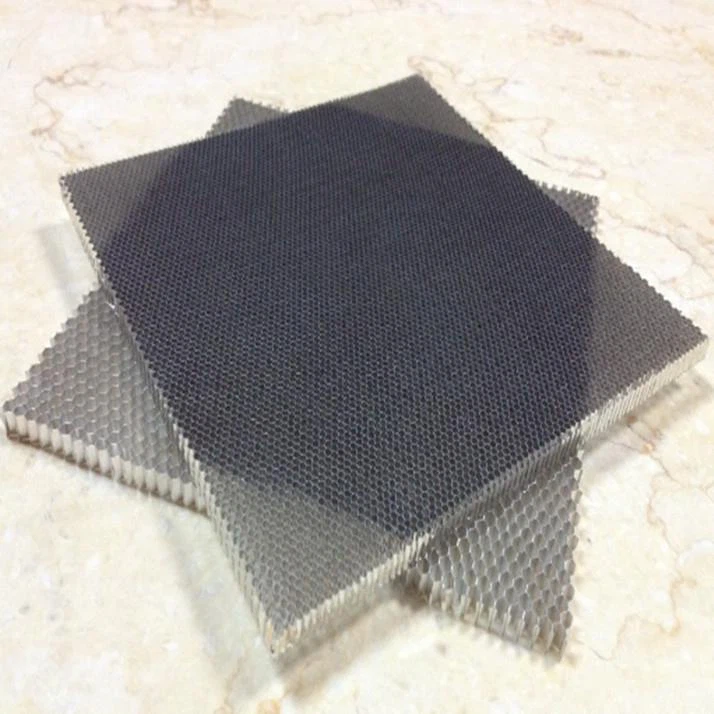

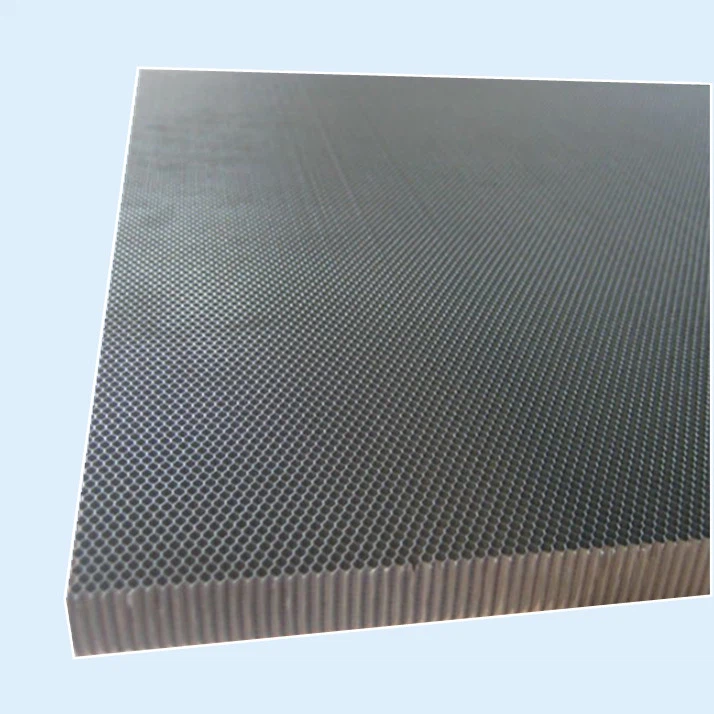

Aluminium Honeycomb Cores


What is aluminum honeycomb core?

Aluminum honeycomb core is made from high quality aluminum foil in alloy 3003 series and alloy 5000 series.

The aluminum foil is treated anti-corrosion and with micro perforations on the foil walls.


Aluminum honeycomb core is a kind of green and environmental compounded materials of high quality, low density, fire protection, sound insulation and thermal insulation.

Aluminum honeycomb core structure.jpg

Aluminum Honeycomb Core Feature:


1. Light Weight, High Strength
The density of aluminum honeycomb is from 0.5 to 1 kilogram /square meter, which greatly reduces honeycomb composite panel weight and cost.


2. Fireproof
Honeycomb core is interconnected by numerous “工”-shaped beams which are not easy to be deformed and has a good resistance of bending and compression, so that the whole honeycomb sheet is very stable.


3. Corrosion Resistance
It has a better corrosion resistance than wood and paper.


4.  Voice Absorption
The honeycomb-made panel can perfectly avoid noisy situation that the sound waves is greatly hindered.


5. Excellent Flatness


6. High Shock-Proof Strength.


7. Environmental Friendly
It’s non-radioactive and can be completely recycled without any harmful volatile gases.


Available honeycomb core sizes:

Cell size: From 4mm to 30mm

Cell side length: From 2mm to 25mm

Foil thickness; From 0.04mm to 0.15mm

Thickness/height: From 3mm to 300mm

Expanded honeycomb core size: 1220x2440mm, 1250x3500mm, 1500x3000mm, any customized size.

Max Sheet Sizes: 1700mm (L) x 8000mm (W)


production of aluminum honeycomb cores.png

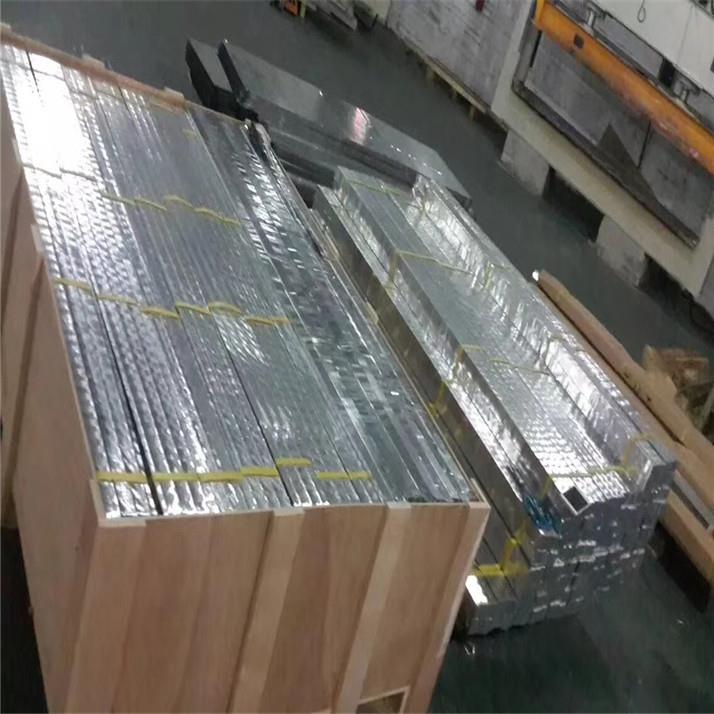

Normally aluminum honeycomb core is shipped in unexpanded slices, when you receive the slices you can expand the honeycomb core by hand. This is to save shipping space and avoid any damages during transportation.

packing of aluminum honeycomb cores.jpg


Applications of aluminum honeycomb cores:

1.Aircraft panels and Lightweight Train Panels/Truck Panels

2.Marine Panels (Commercial vessels and naval vessel bulkheads)

3.And Railcar panels (Doors/Floors and Energy Absorbers/Bumpers)

4.Architectural/Building structural panels (Exterior architectural curtain wall panels)

5.Honeycomb table of Industrial equipment (Sacrificial Laser beds and Tables for laser cutting application)

6.Skis and snowboards

7.Flow straightness for air or fluids/ Air, water, fluid, and light directionalization

8.Heat exchanging/ heating, ventilation, air conditioning equipment and devices

9.RFI/EMC Shielded Vents (Electronic shielding enclosures)

10.Light collimation/ lighting/Illumination Separator

11.Honeycomb Energy Absorbers/ Energy absorption protective structures

12.Laminar Air Flow units/Air Ventilation and purification

13.Sandwich Panels/Honeycomb Composite Panels, Wall ceiling and partition panels

14.Clean Room Panels

15.Acoustic attenuation

16.Electronic Whiteboard

17.Catalytic Converter

18.Honeycomb Grid for Photography Application
