Aluminum Honeycomb Sheets

Aluminum Honeycomb Sheets

Aluminium honeycomb is a lightweight, environmental friendly (100% recyclable) material with good mechanical properties.Aluminium honeycomb is sold perforated or non perforated (the micro perforations allow air flow among cells when needed i.e. vacuum or decompression tools): as unexpanded block, as unexpanded slices, as expanded sheets and expanded drilled honeycomb.

Product Details


Aluminum Honeycomb Sheets


Aluminium honeycomb is a lightweight, environmental friendly (100% recyclable) material with good mechanical properties:



Lightweight, 10mm thick aluminum honeycomb core weighs less than 0.5kg/m2.


Stiffness, aluminum honeycomb core offer good strength, a wide range of cell size and foil thickness can be chosen.


Fire resistance, aluminum honeycomb sheet is a kind of fireproof materials, it is tested A2 fire class building materials.


Compression, shear and corrosion resistance


Flatness, aluminum honeycomb sheet when expanded forms like a thousands of "工" shape walls, it offers super flatness and high strength.

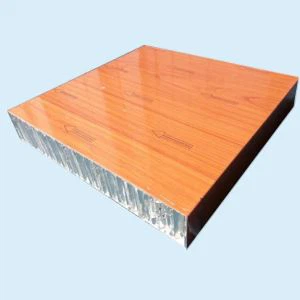

Aluminium honeycomb sheets are most commonly used for making lightweight sandwich panels, it can be easily bonded to different surface materials including aluminum sheet, steel sheet, wood sheet, HPL sheet, natural stones, porcelains and etc. Beside, aluminum honeycomb sheet can be widely used in machines, transportation sector, furniture, ship decoration, lighting fixture and deflector for ventilation devices.


HWSTRONGER can customize the aluminum honeycomb cores: honeycomb thickness (from 3 to 300 mm), cell size (from 3 to 25 mm) and aluminium alloy type and aluminum foil thickness.



Aluminium honeycomb is sold perforated or non perforated (the micro perforations allow air flow among cells when needed i.e. vacuum or decompression tools): as unexpanded block, as unexpanded slices, as expanded sheets and expanded drilled honeycomb.


Aluminium honeycomb sheet



Available Specifications of aluminum honeycomb core sheets:


Node
(mm)
Cell size
(inch)
Foil thickness
(mm)
Max Size
(WxL)(mm)
1.831/80.04 1600x2000
0.06 1600x1600
21/80.04 1600x2000
0.06 1600x1600
2.51/6
(4.2mm)
0.04 1600x2200
0.06 1600x2000
3.01/5
(5mm)
0.04 1600x2400
0.06 1600x2200
0.08 1600x2000
0.10 1600x1800
4.01/4
(6.35mm)
0.04 1600x3100
0.06 1600x2400
0.08 1600x2200
0.10 1600x2000
5.01/3
(8.5mm)
0.04 1600x4000
0.06 1600x3000
0.08 1600x2200
0.10 1600x2000
6.03/8
(9.5mm)
0.04 1600x4600
0.06 1600x3200
0.08 1600x2800
0.10 1600x2400
7.51/2
(12.7mm)
0.04 1600x6000
0.06 1600x4000
103/4
(19mm)
0.04 1600x7500
0.06 1600x5000
124/5
(20.3mm)
0.04 1600x9000
0.06 1600x6000
151
(25.4mm)
0.04 1600x12000
0.06 1600x7500
201+3/80.04 1600x15000
0.06 1600x100000
3020.04 1600x20000
0.06 1600x15000
