Aluminum Honeycomb Cores

Aluminium Honeycomb Sheet

The Aluminum honeycomb core is composed by multi-layer aluminum foil, honeycomb is formed after fully expanded. Our aluminum honeycomb core has sharp and clear hole surface, and it is suitable for adhering to high grade aluminum panels as well as other purposes....
Chat Now


Aluminium Honeycomb Sheet


Aluminium honeycomb sheets can be used in tool machines, in serigraphy, as core for lightweight panels, in airflow ventilation, working surfaces for automatic machines etc. Aluminium honeycomb sheets also can be used as deflector for laminar flow ventilation, and as crash absorber for kinetic energy.


Our clients may customize our products by choosing: honeycomb thickness (from 3 to 300 mm), cell size (from 3.46 to 25.4 mm) and aluminum foil thickness (from 0.04mm to 0.08mm)


In particular, as core material for sandwich panels, aluminium honeycomb sheet is used in different sectors such as public transport vehicles, shipbuilding, building industry for floors, roofs, doors, partitions, facades, and for all products which require an optimal stiffness-to- weight-ratio.


Our Aluminium honeycomb sheet is sold perforated or non-perforated (the micro perforations allow air flow among cells when needed i.e. vacuum or decompression tools): as unexpanded block, as unexpanded slices, as expanded sheets and expanded drilled honeycomb.


Photos of our aluminium honeycomb sheet

aluminium honeycomb sheet 01.jpg



Dimensions of our aluminium honeycomb sheet


Aluminium alloy
3003H18, 5052H14, customize
Foil thickness
regular 0.04mm, 0.05mm, 0.06mm, 0.07mm, 0.08mm
Cell size
from 3.46mm to 25.4mm
Cell height/thickness/depth
from 3mm to 300mm
Expanded sheet size
1250x3000mm, 1220x2440mm, 1500x3500mm, etc.

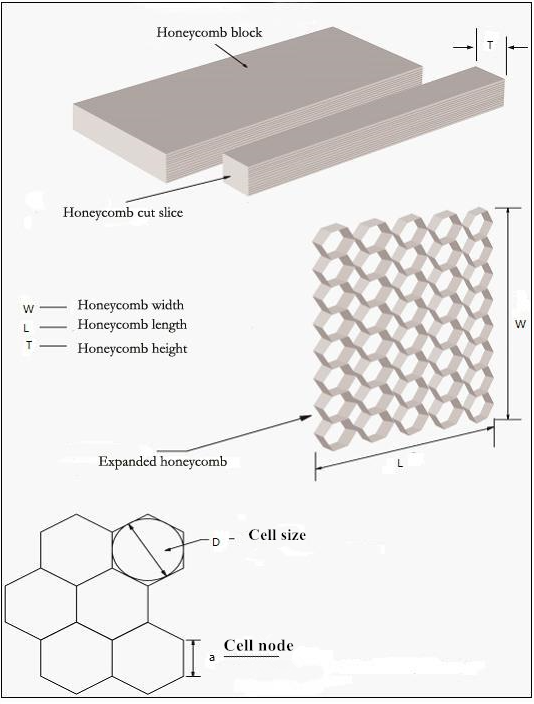

aluminium honeycomb core structure.png




Production facilities of our aluminium honeycomb sheet


honeycomb core factory photo.jpg


aluminium honeycomb sheet factory.jpg



Packaging photos of aluminium honeycomb sheet


Aluminium honeycomb sheet is packed in unexpanded form or expanded form with export plywood crates to protect the honeycomb sheet from damage during transportation.


packing of aluminum honeycomb cores.jpg



Applications of aluminium honeycomb sheet


application of aluminium honeycomb sheet.jpg

application of aluminium honeycomb sheet.jpg


We customize all dimensions for our customers, pls contact us at anytime if you have any interest.
